NEI CAMERAS

HEO builds compact, high-performing, and flight proven NEI cameras as a direct extension of our core imaging and analytics expertise. Our cameras offer a minimal NRE path to NEI sovereign capability for allied governments, and enables commercial partners to make their missions NEI capable.
HEO NEI camera

Build Qualities

Data-Driven, Space-Proven
Integrated Autonomy
Flexible, Multi-Domain
H/001

Data-Driven, Space-Proven

Built referencing the largest commercial non-Earth imaging dataset in the world. Every generation is further refined by lessons from our own camera launches, creating a line that improves with every cycle in orbit.

NEI software overlay
h/002

Integrated Autonomy

Uses our proprietary software to plan, optimise and execute non-Earth imaging missions with minimal operator input.

Camera manufacturing
H/003

Flexible, Multi-Domain

Low SWaP cameras that are engineered to support a wide range of mission profiles and spacecraft. Optics, compute and interfaces accommodate vehicles heading to LEO, GEO and beyond.

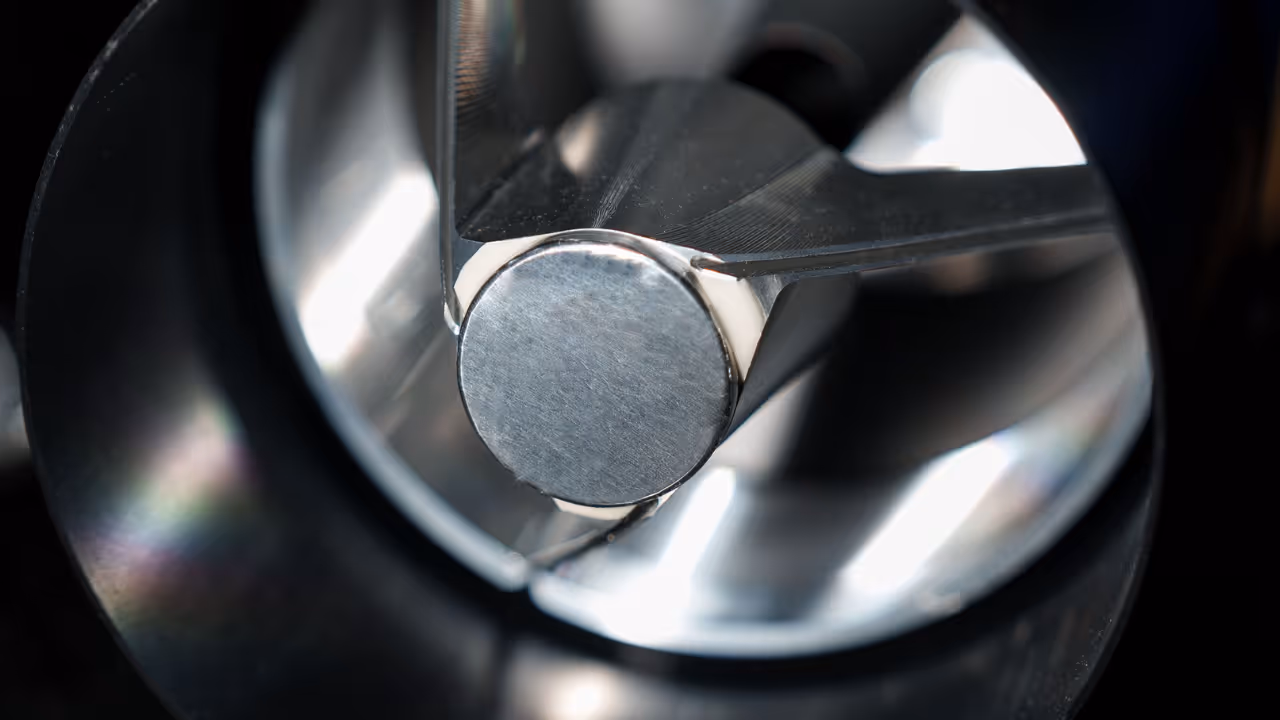

Zoomed in photo of HEO camera

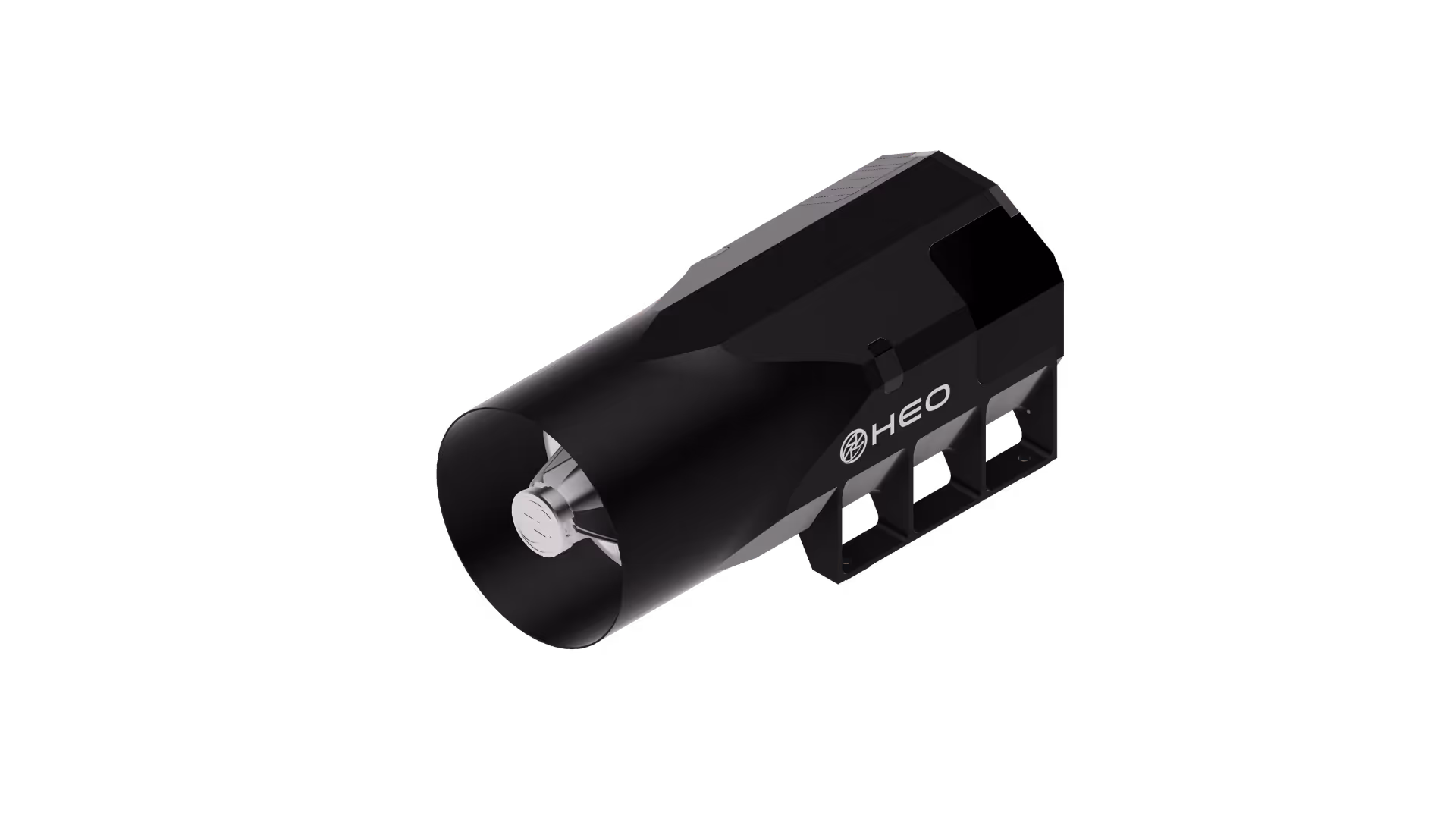

Holmes Mk2

HEO's Holmes Mk2
DESCRIPTION
Holmes Mk2 is HEO’s most compact non-Earth imaging payload. It is flight-proven, requires minimal integration effort, and operates as a hosted payload with negligible impact on the host's primary mission. Holmes Mk2 enables operators to field NEI capability quickly, without bespoke development, while delivering reliable imagery as a standard on-orbit service.
SPECS
34 cm
Resolution
(GSD @100km)
320 x 140 x 148 mm
Volume
3.8 kg
Mass
7.0 W
Max Power Consumption

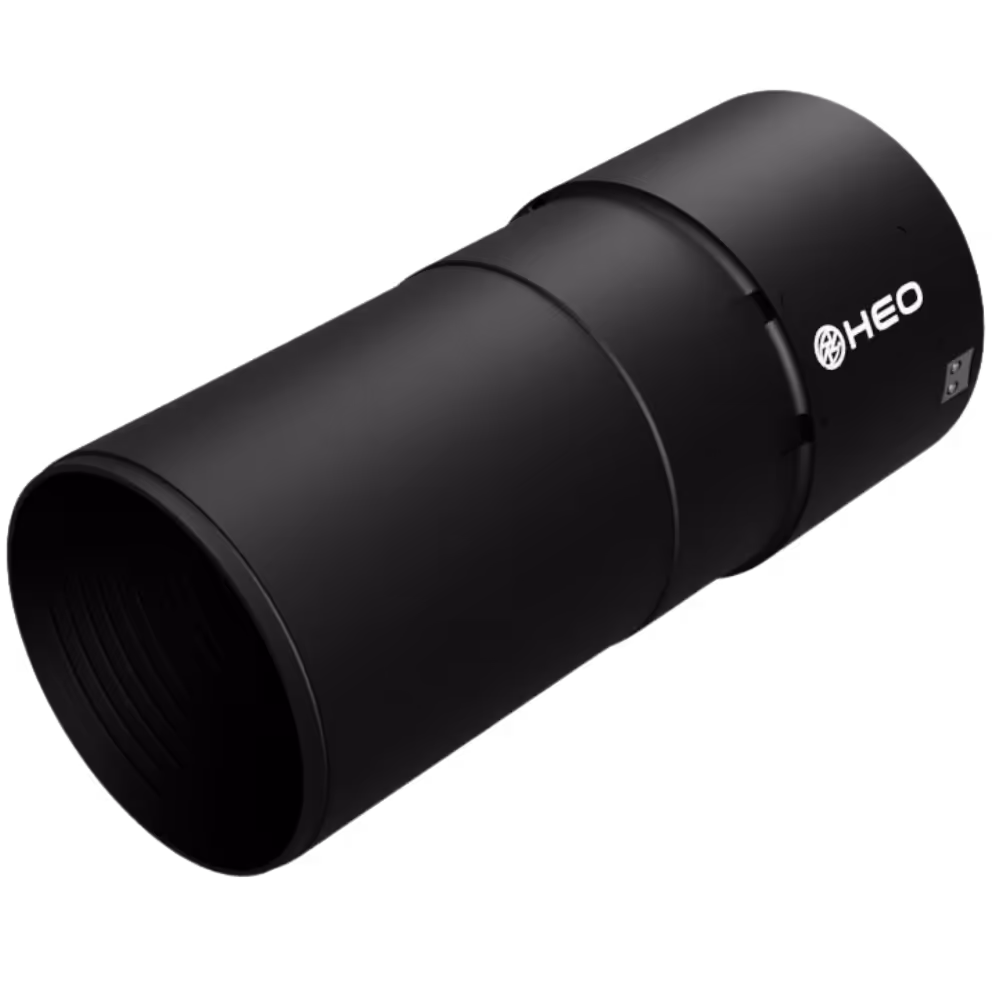

Adler Mk2

HEO's Adler Mk2
DESCRIPTION
Adler Mk2 is HEO’s larger-aperture non-Earth imaging payload. It is flight-proven, requires minimal integration effort, and operates as a hosted payload with negligible impact on the host's primary mission. Adler Mk2 enables operators to field NEI capability quickly, without bespoke development, while delivering reliable imagery as a standard on-orbit service.
SPECS
22 cm
Resolution (GSD @100km)
580 x 230 mm
Volume
8.5 kg
Mass
7.0 W
Max Power Consumption
